Catalina
CAT-1PDS Direct Suspended

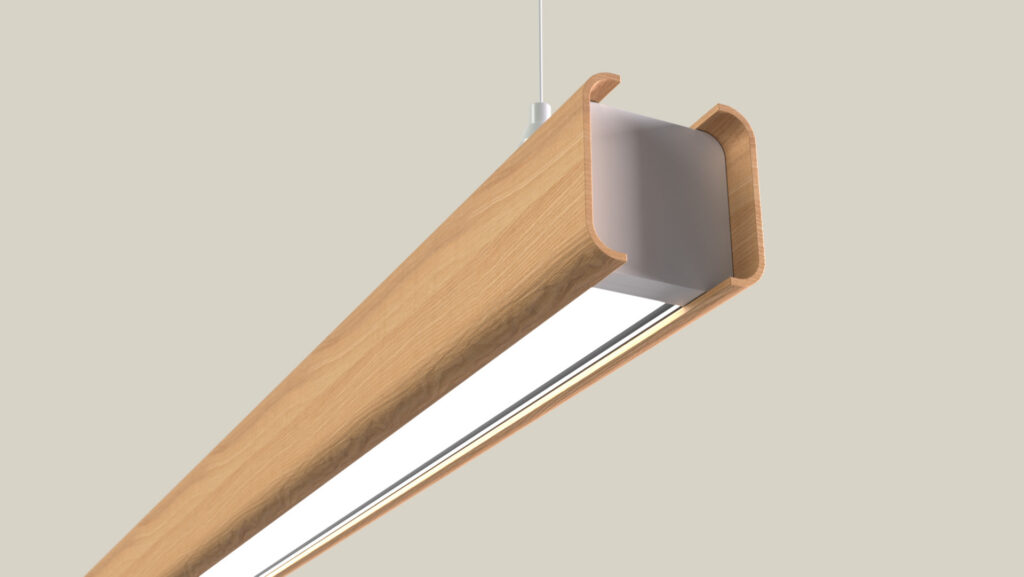

CAT-1PDS 1.5” Aperture Suspended Linear
SPECIFIED LUMEN OUTPUT (SLO) CONFIGURATOR
Please contact factory for Specified Lumen Outputs
DOWNLOAD IES FILES
MEO IES Files
Please contact info@extantlighting.com or call (714) 362-8099
Pro IES Files
Please contact info@extantlighting.com or call (714) 362-8099
DOWNLOAD Revit FILES
Please contact info@extantlighting.com or call (714) 362-8099
Shop Drawings
Please contact info@extantlighting.com or call (714) 362-8099
Installation Instructions
Please contact info@extantlighting.com or call (714) 362-8099
Performance Data
Please contact info@extantlighting.com or call (714) 362-8099

Features
- Dual-extrusion lens combining UV-stabilized acrylic and elastic rubber
for superior sealing and clarity. Rollable lens allows for unbroken light
and continuous runs in lengths up to 48 ft. - Meets AAMA 2604 performance standards for architectural powder
coatings, ensuring long-term color retention, gloss stability, and
resistance to chalking in exterior environments. - Durability tested for corrosion, humidity, and impact, providing reliable
protection and aesthetics for demanding outdoor applications. - Impact resistance rated IK09 for rugged environments.
- Minimalistic 1.5” aperture
- Dimensions: 3.5” H x 2.8” W
- Individual fixture lengths and continuous runs available
- Remote Driver
- Standard Black, White, Dark Bronze and Silver Anodized powder coat
finish with custom powder coat finishes available. - Proudly crafted in Huntington Beach, CA – USA
